The ULMA ORMA Panel Formwork is perfect for the construction of all kinds of vertical concrete structures, both in building construction and civil works (walls, columns, abutments, footings).
It's distinctive for high performance rates with minimum labour costs and erection time.
The system is comprised mainly of panels which, joined by clamps, make up formwork gangs. It has items that provide efficient and safe solution for all types of geometries.
Advantages:
- Designed to withstand high concrete pressures.
- Wide height range of panels: 3.3 m; 2.7 m, 1.2 m and up to 3.3 x 2.4 m (7.92 m2).
- Very versatile: lateral holes for fast erection of standard solutions (bulkheads, corners, columns, etc.). Minimum work on infillings and compensations.

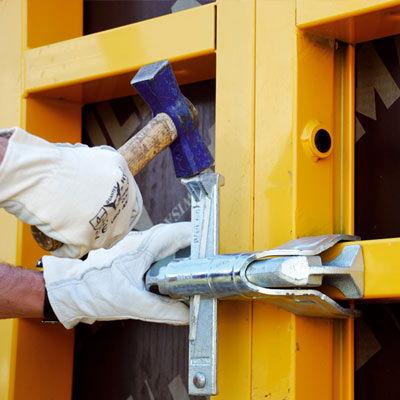

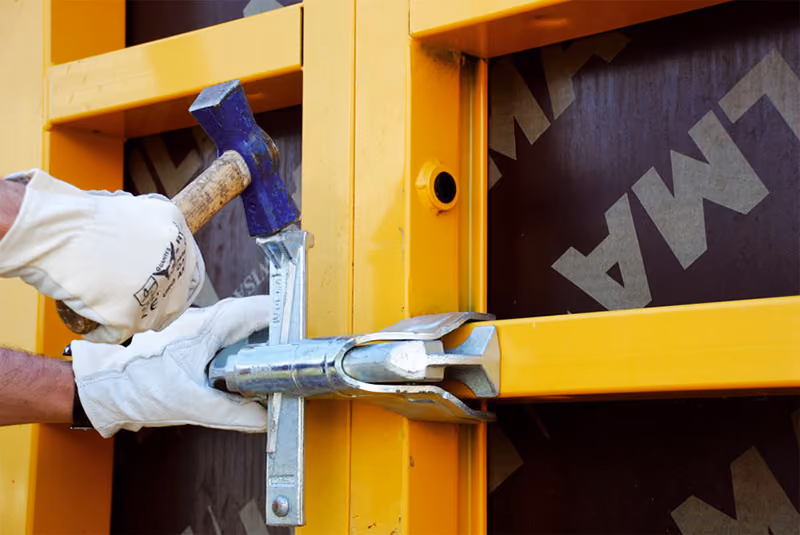

- Panel connection with clamps and a single hammer blow.
- Three basic functions: 1. Join, 2. Align, 3. Stiffen. Adjustment of clamp enables compensations of up to 10 cm.
- Robust panel with galvanised steel frame and reinforced corners.
- Connecting element between panels and corners.
- Robust panel with steel frame and reinforced corners.
- Excellent finishing due to high-quality phenolic birch plywood.
- Wide height range of panels: 3.3 m; 2.7 m, 1.2 m and up to 3.3 x 2.4 m (7.92 m2).
- Safety items: SBU Safety Platform. Galvanised metal platform with accesses designed for wall formwork work at height (bracing, concrete pouring, etc.) with absolute safety.
