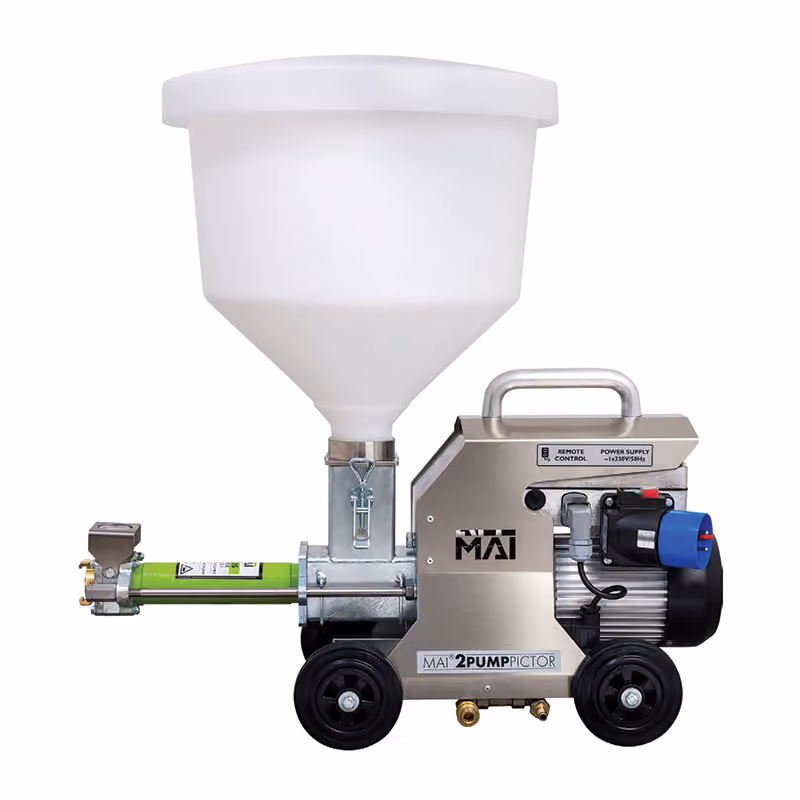

2Pump Pictor

Grout Pump

Compact Size. High Performance.

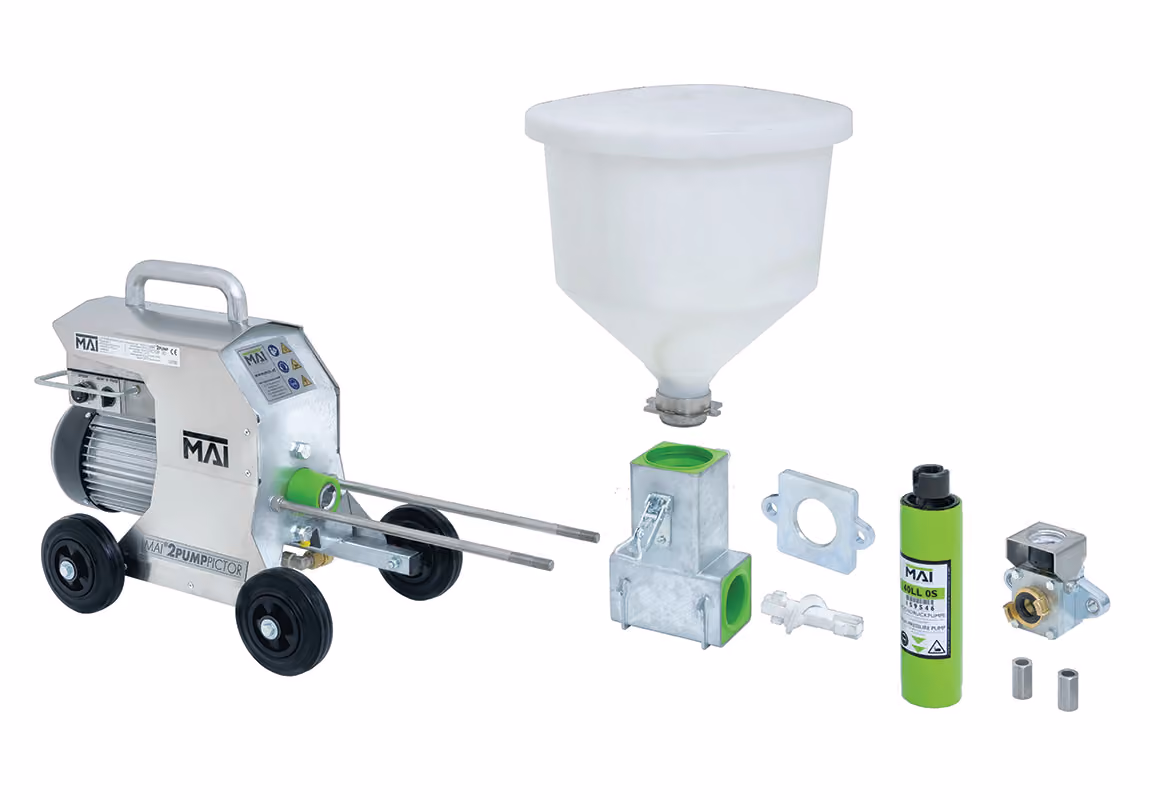

The extremely effective small pump is ideally suited to conveying and spraying all machine-compatible, premixed, paste-like materials with a grain size of up to 3mm. Thanks to its light weight, the pump can be transported easily and effortlessly. It can be disassembled for cleaning in a few easy steps. The use of MAI®CODUR plastic components in the dosing zone keeps cleaning efforts to a minimum. This modern material also increases service life and stops corrosion before it starts. The precisely adjustable, variable pumping capacity provides an enables perfect spraying results.

Extreme Performance

This compact, lighting current-operated unit is a real powerhouse. At 1.5 kW and with a smoothly adjustable output of 0,6 to 9,5 litres per minutes, working pressures of up to 25 bar and hose lengths of up to 35 m can be achieved.

Applications

The feed pump MAI®2PUMP Pictor can be reliably used to process practically any pre-mixed, paste-like compounds and adhesive mortars. The typical areas of application include: Paints, putty, filling compounds, sealing slurries, bituminous thick coating, decorative plaster, finishing coats, composite mortar, bonding emulsion, adhesive mortar, repair mortar, concrete bonders, concrete levelling layers , quartz primer, levelling filler, spray-on waterproofing agents, synthetic resin and mineral finishing coats up to 2mm, grouting mortar und sealing slurries, fire protection mortar, joint grouting and frame mortar, microfine cement, injection paste, injection mortar, and backfilling mortar.


Comparison with traditional systems:

CharacteristicsTraditional SystemsGeoplast Reusable Formwork
Hindrance-Modular system
Waterproof10%100%
ResistanceLimitedUp to 60 kN/m2
Concrete adherenceRequires dismantling agentsBeing made of plastics, GEOTUB PANEL does not stick to concrete
Protection10%The best protection for the columns until the end of the operations
PlumbingRequires long operations and it is often inaccurateQuick and accurate thanks to the external structure that allows easy shoring and plumbing
Dismantling agentsRequiredNot required. Everitt Site Supplies recommend 'Kleen Kote' protection and release formula to maintain your forms in top condition.
